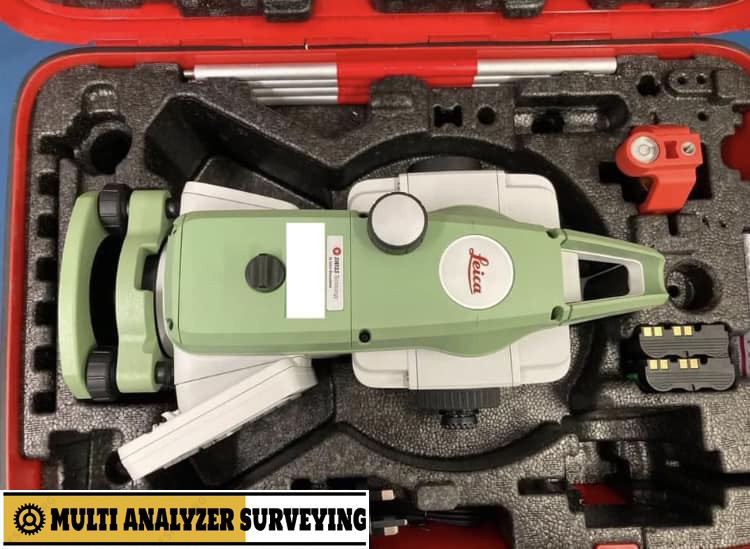

Leica FlexLine TS07 1″ R500 Total Station

Original price was: $6,900.00.Current price is: $4,120.00.

In stock

Includes:

  • Leica FlexLine TS07 1” R500 Reflectorless Total Station, AutoHeight module for automatic instrument height measurement, Electronic Guide Light EGL, WLAN, Bluetooth, RS232 interface, full numeric keyboard with 3.5” QVGA color touch screen
  • 2x Leica GEB361 6-cell Lithium-Ion battery, Leica GKL311 battery charger
  • USB stick/SD card interface, 2GB Internal Flash Memory
  • Lens hood, Cleaning cloth
  • User manual
  • 1 Year warranty

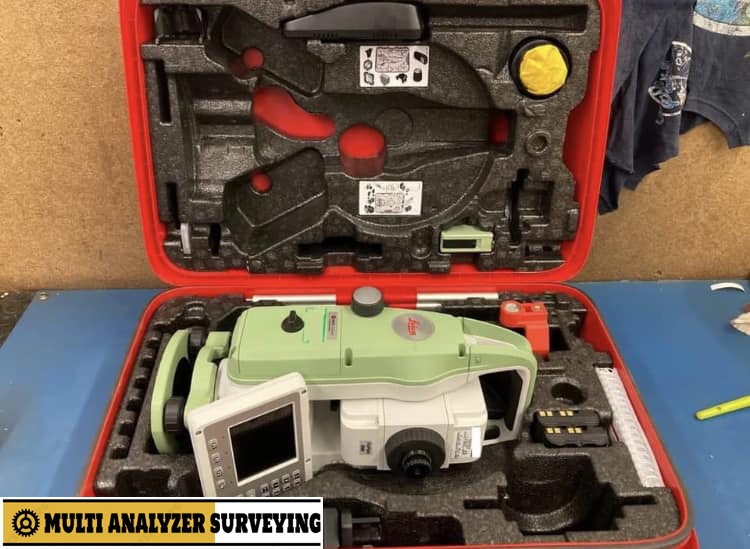

  • Container with protective cover
Buy it now
Brands:

Leica FlexLine TS07 1″ R500 Total Station

The new generation of Leica Flexline manual total station, Leica FlexLine TS10, Leica FlexLine TS07 and Leica Leica FlexLine TS03 Total Station. The TS07 is equipped with the Leica FlexField software, an intuitive, easy-to-use and familiar software. Guided workflows and easy to understand graphics and icons ensure a low learning curve when working in the field. The software makes the interpretation of measurement values or text no longer necessary and guarantees a faster and simple operation when you need it. With its pinpoint distance measurement system, you will be able to measure to both prisms and any surfaces. The TS07 offers the world’s first AutoHeight feature as an option. AutoHeight enables the instrument to automatically measure, read and set its instrument height. Prevent time consuming manual effort and eliminate critical errors during the instrument setup when this revolutionary feature uses a laser from the instrument to measure to the ground and automatically passes the measurement to the software.

  • Work Faster: Measure more points per day due to faster measurement and stakeout procedures (endless drives, trigger key, drives on both sides, pinpoint EDM and more), supported by our easy-to-use and familiar FlexField software. Speed up your learning curve onsite, take advantage of the great ergonomics and reliable measurements. Reduce errors and rework.
  • Use it trouble-free: Increase productivity and minimise downtime by relying on instruments that simple work and come with a global service and support network.
  • Choose products that are built to last: Even after years of use under harsh conditions (like mud, dust, blowing rain, extreme heat and cold), FlexLine still operates with the same high level of accuracy and reliability.
  • Control your investment: Instrument quality has been our standard for almost 200 years, which is why you can count on a lower investment over the entire instrument lifetime and do not have to worry about unexpected costs.

Leica FlexLine TS07 1″ R500 Total Station

SPESIFICATION
Angular Measurement
Accuracy Hz and VAbsolute, continuous, diametrical11” / 2” / 3” / 5” / 7”
  • Display resolution: 0.1’’ (0.1 mgon)
  • Quadruple axis compensation
  • Compensator setting accuracy2: 0.5” / 1”/ 1.5” / 2”
  • Compensator range: +/- 3.78’ (+/- 0.07gon)
  • Electronic level resolution: 2”
  • Circular level sensitivity: 6` / 2mm
Distance Measurement
Range
  • Prism (GPR1, GPH1P): 1.5m to 3.500m
  • Prism GPR1 (Long Range mode) > 10.000m
Non-Prism / Any surface
R500
R1000
Accuracy / Measurement timeSingle prism

  • Precise+ / Once: 1mm + 1.5ppm (typical 2.4s)
  • Precise&Fast / Once&Fast: 2mm + 1.5ppm (typical 2s)
  • Tracking / Continously: 3mm + 1.5ppm (typical < 0.15s)
  • Averaging: 1mm + 1.5ppm
  • Long Range mode / > 4km: 5mm + 2ppm (typical 2.5s)
Non-Prism / Any surface

  • 0 m – 500m: 2mm + 2ppm (typical 3-6s)
  • > 500m: 4mm + 2ppm (typical 3-6s)
Laser dot size
  • At 30m: 7mm x 10mm
  • At 50m: 8mm x 20mm
  • At 100m: 16mm x 25mm
Telescope
  • Magnification: 30x
  • Resolving power: 3”
  • Focusing range: 1.55m / 5.08ft to infinity
  • Field of view: 1°30’ / 1.66gon / 2.7m at 100m
General
Display and keyboard3.5“ (inch), 320 x 240 px QVGA, colour, touch, 28 keys5b
2nd keyboard
Key illumination
Operation
  • Endless drives for HZ & V
  • Trigger-Key: user definable with 2 functions
Power managementExchangeable Lithium-Ion battery
Operating time with GEB361up to 30h
Operating time with GEB331up to 15h
Battery charging time with
GKL341 charger for GEB361 / GEB3313h 30min / 3h
GKL311 charger for GEB361 / GEB3316h 30min / 3h 30min
Data storage
  • Internal memory: 2GB Flash
  • Memory card: SD card 1GB or 8GB
  • USB memory stick: 1GB
Processor
  • TI OMAP4430 1GHz Dual-core ARM® Cortex™ A9 MPCore™
  • Operating system – Windows EC7
InterfacesRS2327, USB device
Bluetooth®8, WLAN9
Mobile Data sidecover: LTE-Modem for internet access
Guide Light (EGL)
  • Working range: 5m to 150m
  • Position accuracy: 5cm at 100m
  • Wavelength red /orange: 617nm / 593nm

(R1000)
Laser plummet
(Laserclass 2)
Accuracy

  • Plumb line deviation: 1.5mm at 1.5m instrument height
  • Diameter of laser point: 2.5mm at 1.5m instrument height
AutoHeight module for automatic instrument height measurement (Laserclass 2)Accuracy

  • Distance accuracy: 1.0mm @ 1m
  • Distance range: 0.7m to 2.7m
Weight4.3 – 4.5kg
Environmental specificationsWorking temperature range: –20°C to +50°C
Arctic version: –35°C to +50°C
Dust / Water (IEC 60529) / Humidity: IP66 / 95%, non-condensing
Military Standard 810G, Method 506.5

Includes:

  • Leica FlexLine TS07 1” R500 Reflectorless Total Station, AutoHeight module for automatic instrument height measurement, Electronic Guide Light EGL, WLAN, Bluetooth, RS232 interface, full numeric keyboard with 3.5” QVGA color touch screen
  • 2x Leica GEB361 6-cell Lithium-Ion battery, Leica GKL311 battery charger
  • USB stick/SD card interface, 2GB Internal Flash Memory
  • Lens hood, Cleaning cloth
  • User manual
  • 1 Year warranty
  • Container with protective cover
