Name: Adash A4500 VA5 Pro Vibration Analyzer &amp; Data Collector
SKU: 6830
Price: 3920.00 USD
Availability: InStock

Adash A4500 VA5 Pro Vibration Analyzer & Data Collector

In stock

Advanced Diagnostics: Performs bump tests (natural frequency analysis), ODS (Operating Deflection Shapes), order tracking, and orbit analysis for journal bearings.

Buy it now

Brands: Adash

Tags: Adash

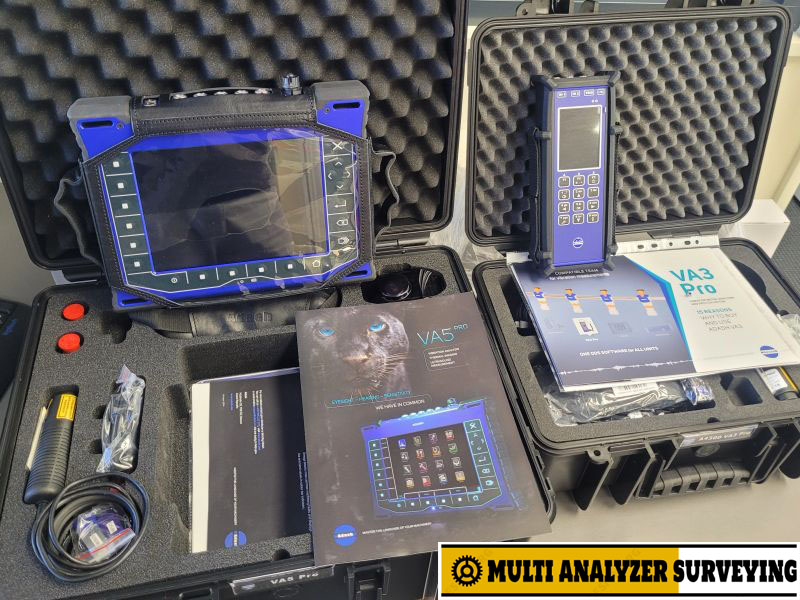

Adash A4500 VA5 Pro Vibration Analyzer & Data Collector

The Adash A4500 VA5 Pro is a flag-ship 4-channel portable vibration analyzer and data collector designed for condition-based maintenance (CBM) and industrial machine diagnostics. It integrates vibration testing, ultrasound detection, thermal imaging, and motor diagnostics into a single field-ready unit.

Key Technical Specifications

Feature	Specification
Input Channels	4 AC (vibration/ICP power), 4 DC (process values), 1 TACHO (speed/trigger)
Frequency Range	0.35 Hz to 90 kHz (1 Ch), 0.35 Hz to 25 kHz (4 Ch)
FFT Resolution	Up to 3,276,800 lines
A/D Conversion	24-bit with 64-bit internal signal processing (120 dB dynamic range)
Display	High-resolution touchscreen + tactile keyboard interface
Storage & Memory	64 GB internal memory (supports up to 16 GB per single route)
Battery Life	~8 hours of continuous field operation
Enclosure Rating	IP65 heavy-duty aluminum case (1.98 kg)
