Geomax Zone60 DG Fully-Automatic Dual Grade Laser

Geomax Zone60 DG Fully-Automatic Dual Grade Laser

The powerful GeoMax Zone laser rotators portfolio offers the right construction tools for all trades and applications. Regardless if you’re just starting in the industry dealing with the fundamentals or you’re a seasoned professional handling complicated applications, GeoMax laser rotators are ready to work when you do. Choose the perfect laser for your levelling, aligning or grading application from one of the best laser rotator portfolios in the market. Solid-built and dependable in any element, these lasers ensure long-lasting operations thanks to multiple charging options and offer interchangeable accessories. The Zone60 DG is a fully-automatic grade laser in both axes, specifically designed for construction workers who need the dependability and accuracy of a fully professional grade laser on a daily basis. Digital grades can be entered up to 15 per cent and is, therefore, suitable for every construction site. Through the display settings of inclinations in two axes, horizontal and vertical, are very simple.

Managing high variety of applications

Perfect for outdoor applications, such as grading of roads, the Zone60 DG allows you easily to correct and remove irregularities. It guarantees you repeatable and accurate results in long distances even in the toughest working conditions. The Zone60 DG is the ideal partner for level, single or dual slope as well as batterboard applications. It can be used to align for marking of formwork placing and also batterboard points to mark out axis. The Zone60 DG is ideal for contractors who need to grade and excavate for plans or ready build structures. The fully automatic operation in horizontal and sloped plane gives a perfect reference for all levelling and grading.
Beam catching and monitoring

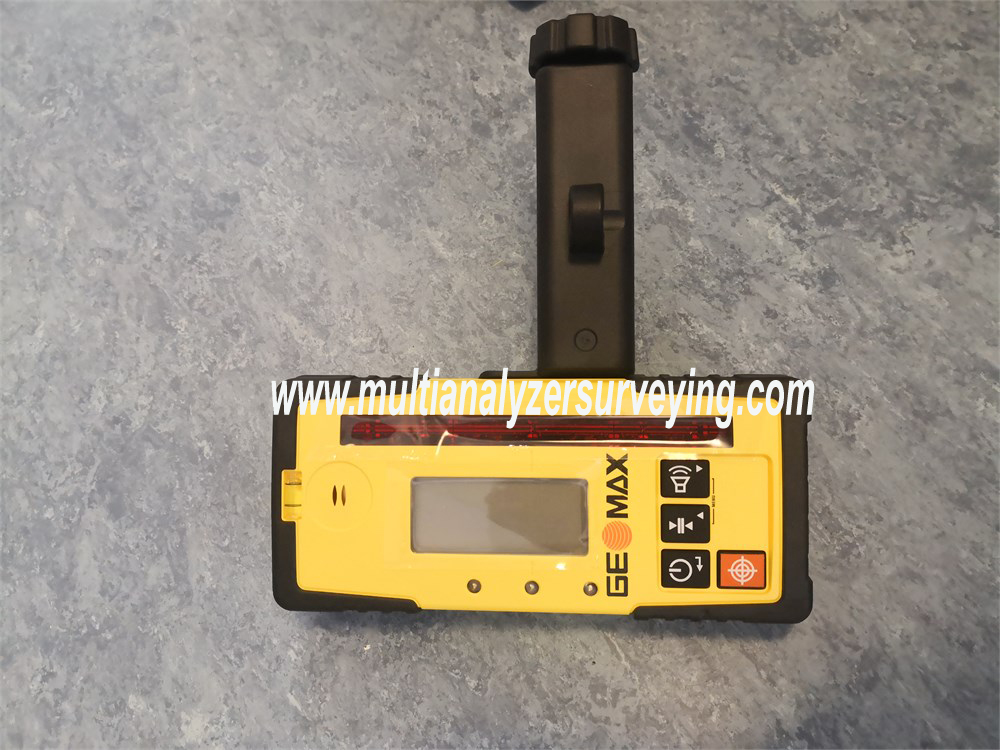

With the ZRD105B laser receiver the beam can be caught and monitored automatically. Fully-automatic grade specifically designed for construction workers who need the dependability and accuracy of a fully professional grade laser. With a straightforward user interface on both, the laser and the RF remote, the craftsman is always in full control.

Geomax Zone60 DG Fully-Automatic Dual Grade Laser

Laser
Color Red
Wavelength 635 nm
Classification Class 1
Direction Horizontal and vertical
Visibility Visible

Range
Interior N/A
Exterior Up to 3,000 feet (900 meters)
Self Leveling ±6 degrees
Remote N/A

Battery/Power
Battery Life with Rechargeable Battery Pack Up to 40 hours
Battery Life with Alkaline Batteries N/A
Power Source 4 x D-cell alkaline or Li-Ion batteries
Battery Life Alert Yes

Features
Automatic Shut-Off N/A
Display N/A
Drop Damage Protection N/A
Bump Sensor (H.I./Out of Position Alert) N/A
Protection Class IP67 dustproof and water submersible
Tripod Adapter (Center Screw Thread) 5/8 x 11
Removable Laser Cage (for exact beam spotting) N/A
Detecting Indicator N/A
Dual Handles N/A
Built-in Bubble Vial N/A
Adjustable Rotating Speed 300, 600 RPM
One-Touch Commands N/A
Wall Mount Bracket N/A
Plumb Point N/A

General
Maximum Power Output N/A
Weight 7.5 lbs (3.4 kg)
Dimensions N/A
Warranty 5-year
Remote Control Operating Distance N/A

Extra Technology
Remote Control ZRC60 Remote Control
Detector/Receiver ZRB35 Basic, ZRP105 Pro or ZRD105 Digital Receiver
Smart Scan® N/A
Smart Slope® N/A

Accuracy
Horizontal ±1/16 inch at 100 feet (1.5 mm at 30 m)
Vertical ±1/16 inch at 100 feet (1.5 mm at 30 m)

Temperature
Storage -22 to 140° F (-30 to 60°C)
Operating -22 to 122° F (-20 to 50°C)

Charger
Input N/A
Output N/A
Charging Time N/A

Functions
Slope Match N/A
Grade Operation Fully-automatic
Automatic Leveling Yes
Beam Operating Modes N/A
Scanning Modes N/A

Geomax Zone60 DG Fully-Automatic Dual Grade Laser

Applications
Checking/Setting Elevations Yes
Transferring Points from Floor to Ceiling N/A
Machine Control of Excavators, Graders, Dozers or Similar Equipment N/A
Installation of Interior Fittings (cabinets, lighting, windows, countertops, etc.) Yes
Short-Range Leveling for Decks, Patios & Swimming Pools Yes
Installation/Leveling Interior Walls Yes
Installation/Leveling Ceiling Grids N/A
Squaring and Layout of Partitions, Walls & Tile Floors Yes
Concrete Forms, Footings and Foundations Yes
Plumb Reference N/A
Checking Elevations of Sub-Base and Sub-Grade N/A
Short-Run Vertical Alignment Yes
Checking Building Square & Area N/A
Estimating Cut & Fill N/A
Matching Existing Slope & Grade Yes
Locating Finished Floor Levels N/A

Grade
Type Dual
Percentage ±15%
Accuracy N/A

In the Box

GeoMax Zone60 DG Fully-Automatic Dual Grade Laser

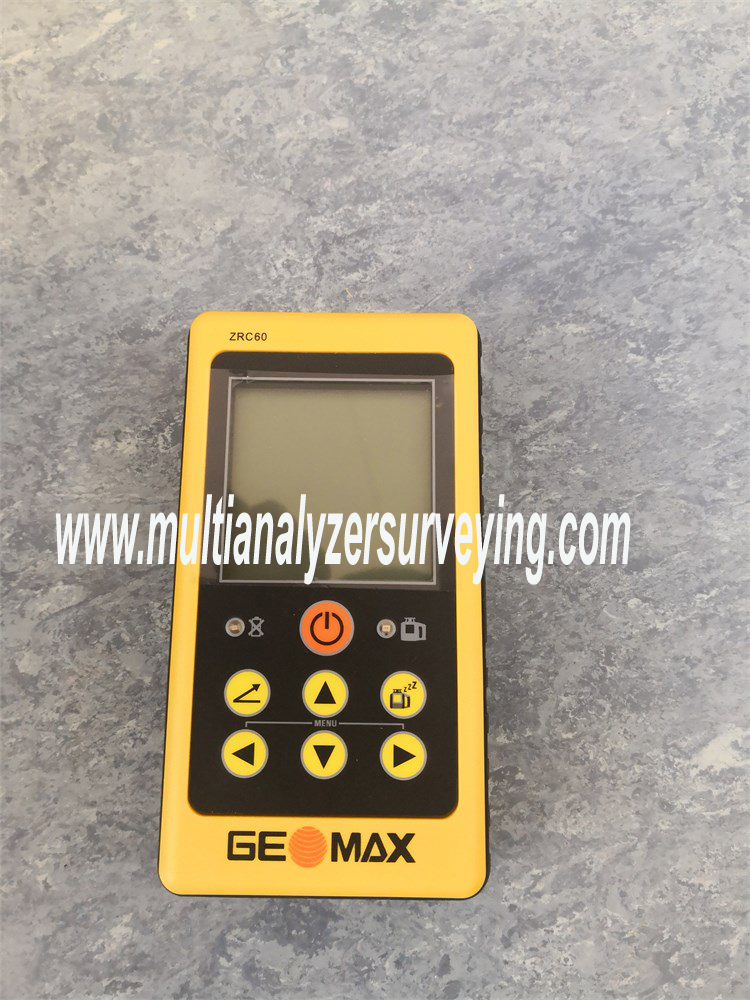

ZRC60 remote control
Alkaline battery tray
5-year manufacturer’s warranty
