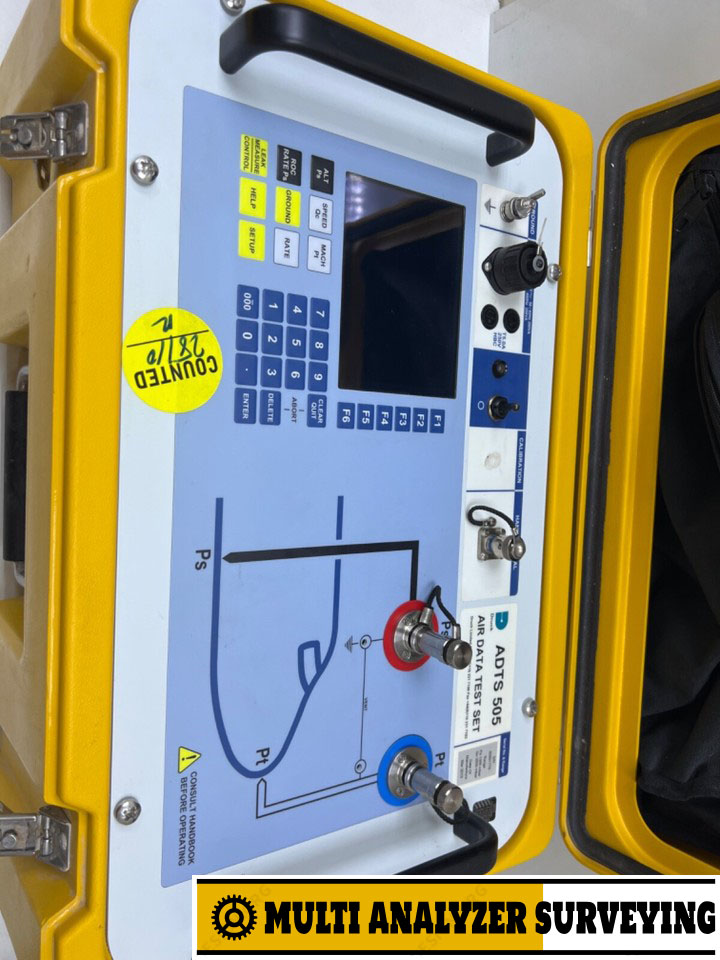

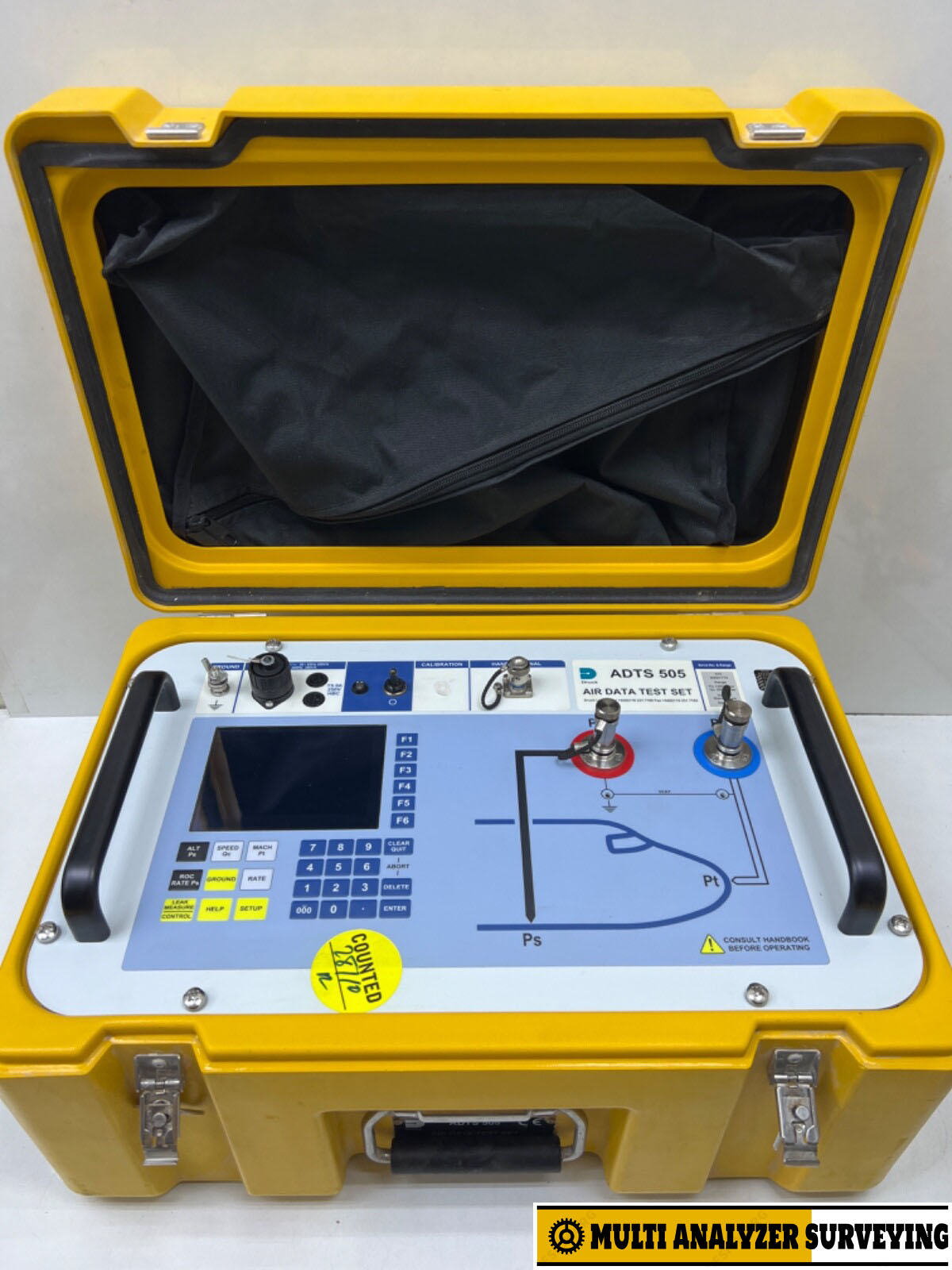

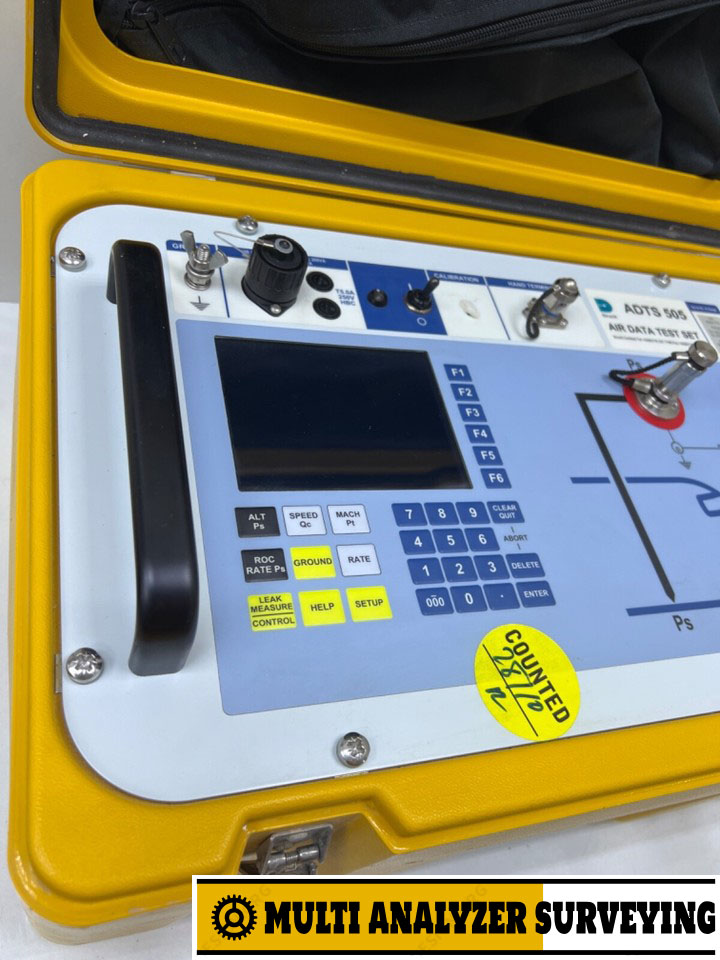

GE Druck ADTS 505 Air Data Test
The ADTS 505 allows for the rapid and precise testing of critical flight instruments on the flightline, including altimeters, airspeed indicators, rate of climb indicators, mach meters, and air data computers. It is compatible with a variety of fixed or rotary wing civil aircraft.
Air Data Test Sets (ADTS) from Druck, a Baker Hughes business, are used for ADTS testing and calibration of airspeed and aircraft pitot static systems. In the aviation industry, pitot static testers are required whenever avionics, altimeters, or aircraft pitot static systems are manufactured, repaired, calibrated, or integrated into the aircraft.
A compact portable Air Data Test Set ideal for civil aircraft applications.
- Full automatic control
- High accuracy, RVSM compatible
- Rugged flightline construction
- Rugged flightline construction
Features
- High accuracy—RVSM compliant
- Fully automatic control
- Rugged flightline construction
- Wide-ranging aircraft compatibility
- Integral pneumatic supplies
- Protection for aircraft instruments
- Standard remote hand termina
GE Druck ADTS 505 Specification:
Parameter Altitude
- Operating range: -609 to 18288 m(1) (-2,000 to 60,000 ft)
- Resolution: 0.30 m (1 ft)
- Accuracy: 0.91 m (3 ft) at sea level(2) , 2.13 m at 9144 m(2) (7 ft at 30,000 ft), 8.83 m at 18288 m(2) (29 ft at 60,000 ft)
- Repeatability: ±0.30 m (±1 ft), ±0.60 m (±2 ft), ±1.82 m (±7 ft)
Included Accessories:
- AC power lead—5 m (16 ft)
- Ps and Pt hoses—3 m (10 ft)
- Operator’s manual
- Calibration certificate
