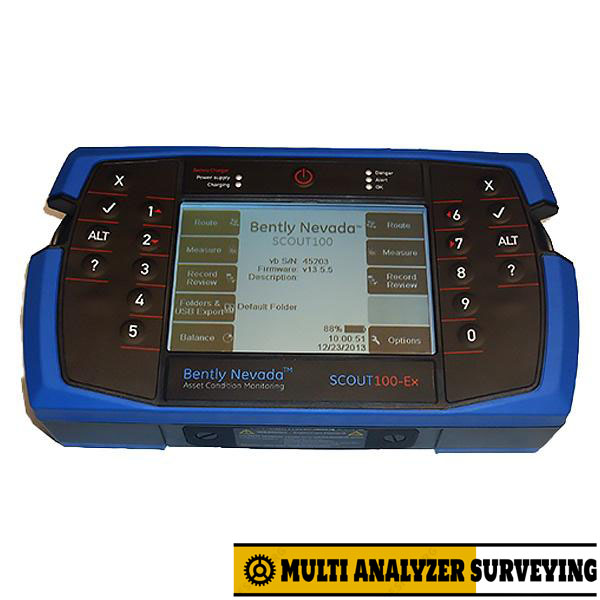

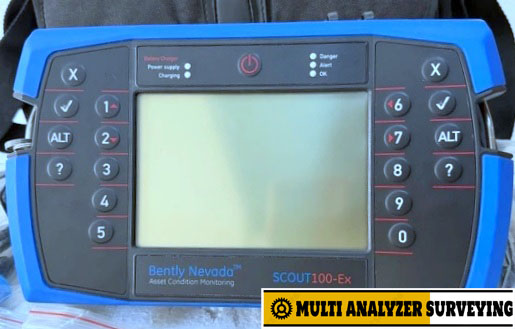

Bently Nevada Scout100-Ex Vibration Analyzer , Balancer and Data Collector
What it is used for
The SCOUT100-Ex is particularly suited to route-based predictive maintenance. A technician can collect vibration measurements at multiple machine points and then analyze the data directly in the field.
Typical applications include:
- Motors and generators
- Pumps and compressors
- Fans and blowers
- Gearboxes
- Bearings
- Rotating machinery
- Machinery in hazardous industrial environments
- Field dynamic balancing
Its two-channel architecture allows simultaneous measurements, while the tachometer/Keyphasor capability supports phase, order tracking, coast-down and balancing measurements.
Vibration-analysis capabilities
The instrument supports a broad frequency range, with selectable Fmax values up to 40 kHz, and resolutions up to 6,400 lines. It can display measurements in acceleration, velocity and displacement and supports RMS, peak and peak-to-peak measurements.
The 6Pack recording system is useful for capturing multiple types of vibration information in a single measurement, while long-time waveform and coast-down recording are useful for more advanced troubleshooting.
Balancing
A particularly useful feature is its built-in two-plane balancing capability. It can perform balancing using acceleration, velocity or displacement measurements, with tachometer input for rotational speed and phase reference. Balancing speeds are specified from 30 to 60,000 RPM.
Software ecosystem
SCOUT100-Ex is designed to work with Bently Nevada System 1 and Ascent Level 2 software for route management, data transfer and deeper vibration analysis.
Important distinction
The SCOUT100-Ex is primarily a portable condition-monitoring/diagnostic instrument, rather than a permanently installed protection system like Bently Nevada’s rack-based machinery protection platforms. Its strength is taking sophisticated vibration measurements directly at the machine, including in suitably certified hazardous areas.
Bottom line: the SCOUT100-Ex is a rugged, industrial-grade handheld vibration analyzer aimed at predictive maintenance, vibration diagnostics and field balancing, with the added benefit of hazardous-area certification.
If you’re evaluating it for procurement or comparing it with instruments such as the ACOEM Falcon or Betavib VibWorks LT, the most useful next step is a spec-by-spec comparison table.
Key capabilities
| Feature | SCOUT100-Ex |
|---|---|
| Measurement channels | 2 simultaneous channels |
| Sensor types | Accelerometer, velocity, displacement, current |
| ADC | 24-bit |
| Maximum FFT resolution | 6,400 lines |
| Maximum frequency | 40 kHz |
| Dynamic range | ≥ 95 dB |
| Recording | Spectrum, waveform, 6Pack, coast-down, long-time waveform |
| Tachometer | Laser, contact, TTL, Keyphasor |
| Speed measurement | 10–300,000 RPM |
| Balancing | 1- or 2-plane |
| Balancing speed | 30–60,000 RPM |
| Internal memory | 1 GB |
| Battery life | About 10 hours |
| Protection | IP65 |
| Size | 252 × 148 × 60 mm |
| Weight | About 1.2 kg |
| Hazardous area | ATEX Zone 2 / IECEx Zone 2 |
